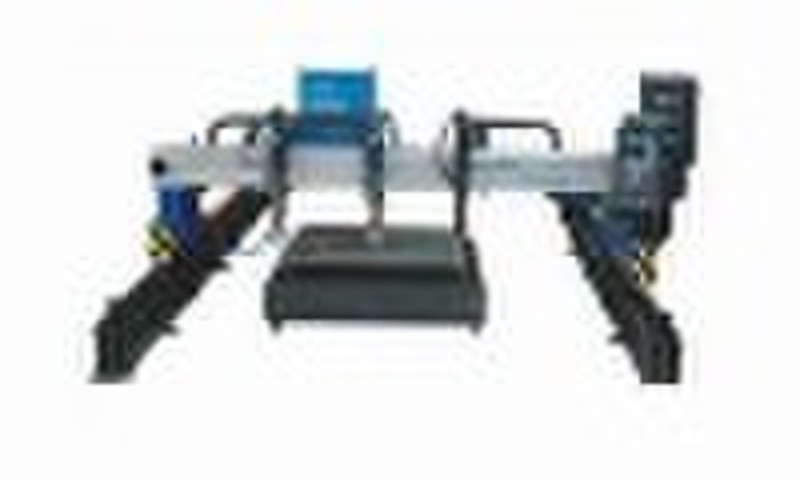

CNC cutting machine

Cutting machine Technical Specifications: Three-dimensional simulation design The combination of structure rigidity and numerical dynamic control embodies the advantages of advanced numerical control system as cutting quality and efficiency. Excellent technique of processing and assembling Stress relief anneal is adopted for all hot-worked ac-cessories and part to ensure a long-term stable operation of the machine. The overall die forming technique and fixture auxiliary assembly are designed to reflect each aspect of cutting. Delicate drive and transmission Imported original world-top servo system and deceleration system allocate seven-grade precision drive rack and ground track, which perfectly embodies the efficiency of numerical control cutting. parameter 2500mm3150mm4000mm5000mm6300mm7100mm8000mmDiving modedriven of one sideDrive of double sidesmmeffective cutting width1700235032004000530061007000mTrack length1212m or according to customer's requirementseffective cutting length2.52.5m less than Track lengthSpecification of trackAccording to the requirements of cutting fhe length of configurationTraveling speed0-6000mm/min0-6000mm/min drive of one side0-12000mm/min0-12000mm/min drive of double sidesCutting speed100-750mm/min100-750mm/min fire cutting100-3000mm/min100-3000mm/min plasma cuttingPlate thickness6150mmfire cutting6150mm or thickerdepends on plasma source's abilityNo. of torches22 groups or at customer's choiceInput power3-380V±10%, 50HZ±1%Torch lifting200mmArc automatic height adj. deviceFor plasma torchCapacitance automatic height adj. deviceFor flame torchPowder marking deviceFor flame torchPlasma function under waterInstruction on order
