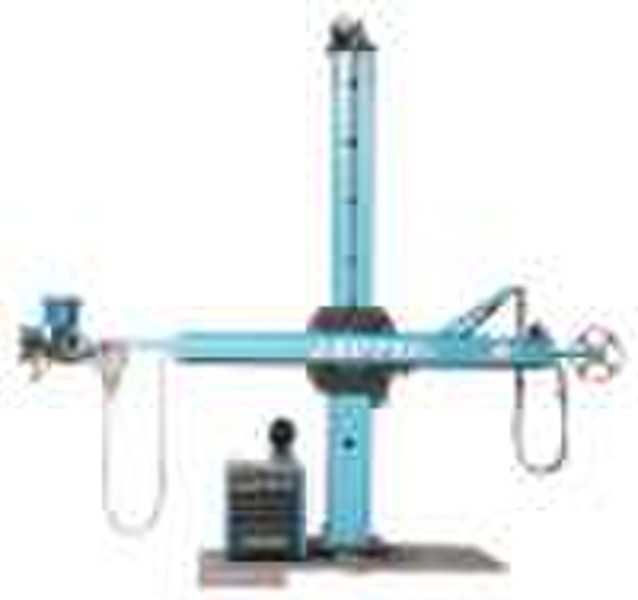

welding manipulator

welding machineA, Using the international famous-brand inverter, It has high reliability and high precision of adjusting the electromotor rotate speed. B, The horizontal boom and vertical mast are made out of the box profiled iron: This structure is compact and rigidity is strong. C, The built-in counterweight in the vertical mast: to lift the boom up and down equably, and reliably lock it on the ideal location. D, Adopt various protecting mode such as mechanical set and electric part: Guarantee to use safely and run reliably. E, Triangular track: Motion is smooth and precision is high (rectangle track which has the heavy bearing capacity is adopted for the heavy-duty and manned types). F, Modular design: The devices such function as turn round, travel, manned set, retractile boom can be assembled optionally according to the requires of users. model parameter 2x23x34x45x56x67x78x8(m) The boom travel2m3m4m5m6m7m8m(mm/min)The boom vertical motion speed80-800mm/min(,)steepless speed is adjusted by the inverter(m)The boom horizontal travel2m3m4m5m6m7m8mThe boom horizontal motion speed150-2500mm/min(,) steepless speed is adjusted by the inverterThe travel car travel speed150-2000mm/min(,)steepless speed is adjusted by the inverter or manual movingThe angle range of the mast rotation±360o(rpm) The mast rotation speed0.03-0.75rpm,)steepless speed is adjusted by the inverter or manual rotationThe boom allows the total load at average distribution100kg200kg400kgThe boom stretching out extent(max)2950395051006100725083009300The boom stretching out extent (min)950110012501300W Track gauge1500180020702570Input voltage-380V three phrases -380V
